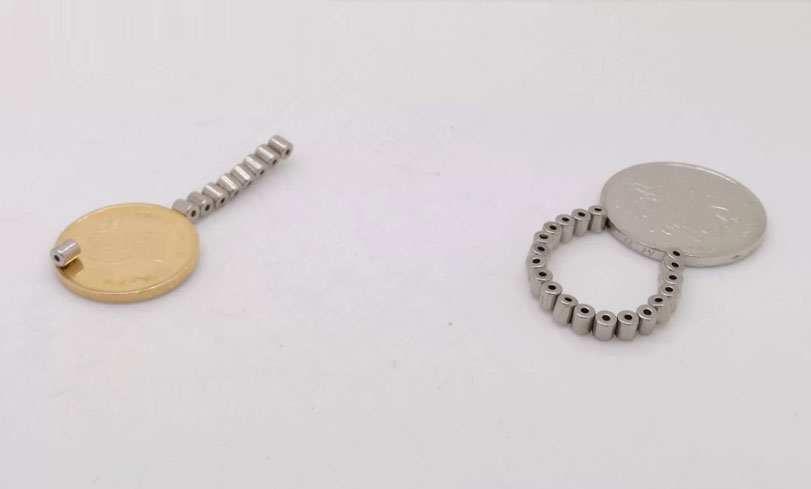

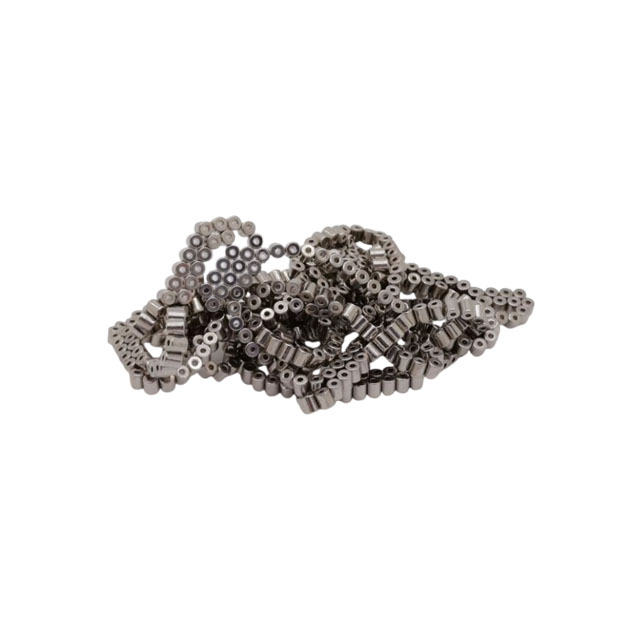

Miniature mini radial magnetic ring with 1mm hole 3x1x3.2mm

This is a small radial magnetic ring made of NdFeB N42 grade material, hollow cylindrical, OD 3mm, hole 1mm, height 3.2mm, radial magnetization, the product weighs about 0.15g, nickel-copper-nickel treatment, ±0.05mm tolerance, mainly used for vibration motors
Products Inquiry

PRODUCT INFORMATION

This is a small radial magnetic ring made of NdFeB N42 grade material, hollow cylindrical, OD 3mm, hole 1mm, height 3.2mm, radial magnetization, the product weighs about 0.15g, nickel-copper-nickel treatment, ±0.05mm tolerance, mainly used for vibration motors, high-speed motors, support size, performance customization, welcome to send inquiries about prices.


Radial strong magnetic ring 3x1x3.2mm

Miniature mini radial magnetic ring with 1mm hole 3x1x3.2mm
