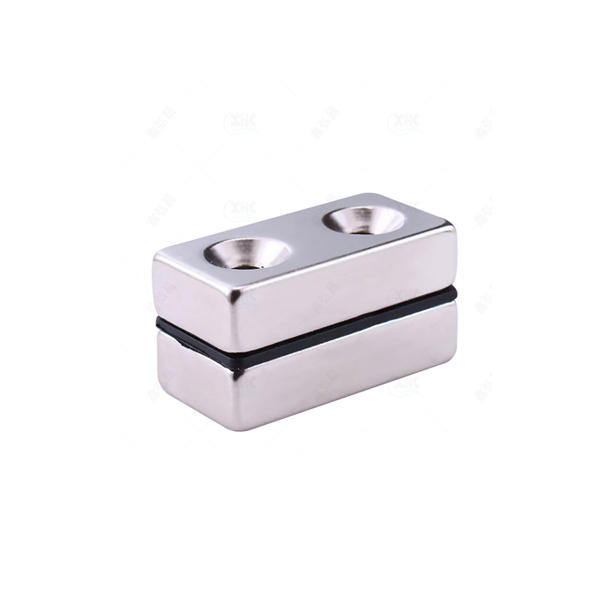

Product name: Rectangular with hole strong magnet
Brand: Courage Magnet
Product material: hinged iron boron Ndfeb
Product specification: Strong magnet with hole (diameter 40×20×10mm)
Product grade: N35
Magnetization direction: Thickness magnetization (NS poles are distributed on the thickness respectively)
Working temperature: up to 80 degrees Celsius (normal temperature will never demagnetize)
Product features: hard and brittle, fragile (do not hit do not fall)
Cross-layer process: Brocade copper brocade (three-layer electroplating, anti-rust and anti-corrosion)
Note: Because the magnetic force is too strong to avoid pinching fingers, it is forbidden for people under the age of 14 to use it alone.
Note: Our company is a direct-selling magnet manufacturer. The size and performance of rectangular magnets with counterbore holes can be customized. There is no need for mold costs. If there is a price, please contact the website customer service if you need samples.
Similar to rectangular perforated neodymium magnet
Ferrite grade, sintered ferrite magnetic property parameter table
NdFeB magnet grade, Sintered neodymium magnet performance grade parameter table
Neodymium(Ndfeb) Magnet Material Safety Data Sheet
Sintered Ferrite Material Safety Data Sheet Pdf
Magnetic properties grade parameters of smco rare earth magnets
This is a very small size rectangular block magnet with galvanized surface, 3mm length, 1.5mm width and height, with very fine tolerance, magnetized by lengthwise direction, mainly used in precision electronics, instrumentation, please contact us if you need to buy....
Flat magnets can be flat square magnets or round magnets. Today's sample is a flat rectangular magnet, with a length of 20mm, a width of 10mm, a thickness of 1.5mm, and a zinc coating on the surface. Thickness magnetization is used for thin workpieces. The use of this relatively flat neodymium rectangular magnet requires special attention....
This is a dedicated to screwdrivers, drills on top of the ring magnet, the material is rare earth neodymium, N38 grade, outer diameter 15mm, height 10mm. hole diameter 7mm, the use of very simple, is to set the magnetic ring in the screwdriver (screwdriver head) on top of the purchase of the hole is recommended to be larger 1mm....
Product name: 9.5mm diameter thickness 1.5mm neodymium intense magnetic，Type of magnet: permanent magnet，Magnet shape: Round，Magnet class: n45，Tolerance: ±0.05，Coating: conventional nickel copper nickel，Pull: About 1.6 pounds，Magnetic strength: about 2200 Gauss....
Most of the epoxy magnets we have seen are black, that is, black epoxy magnets. In fact, it can also have other colors, such as gray, red, blue, green, etc. If you like this kind of magnet, please give us feedback. The size and performance grade can be customized....
This product is a customized countersunk magnet ring, made of rare earth neodymium iron boron, 17mm outer diameter, black nickel plating on the surface, compared with ordinary nickel plating....
This is a medium and large size countersunk square magnet, made of rare earth neodymium material, with strong magnetic field strength, magnet length and width size is 40mm, thickness 10mm....
You are now viewing this is a high grade (N50) hollow cylindrical magnet with a through hole drilled in the middle of a cylindrical neodymium magnet, OD size 7.5mm, hole 3mm, height 30mm....
