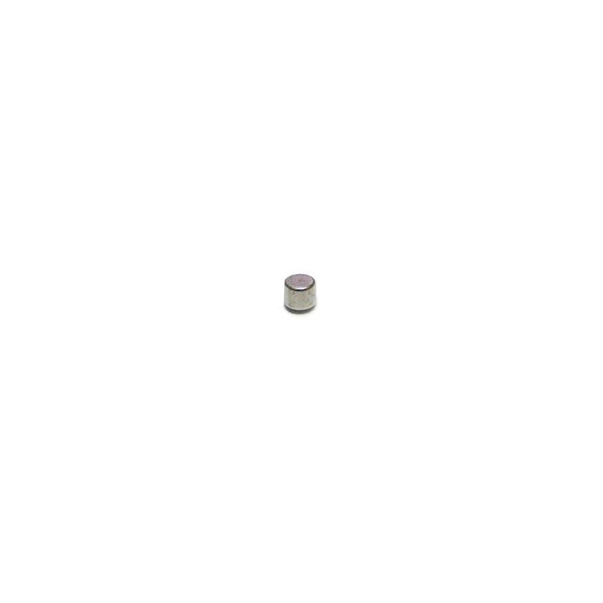

N42 grade neodymium magnet D2*2 product specification;
Appearance: silver white
Material: N42
Remanence Br: 1.326T 13.26KGs
Coercivity Hcb: 983.5 kA/m 12.92kOe
Intrinsic coercivity Hcj: 1028 kA/m 12.92kOe
Maximum magnetic energy product (BH) max: 40.89MGOe
Tolerance: plus or minus 0.05mm
Plating: Nickel Copper Nickel
Magnetization direction: Axial magnetization
Surface Magnetic Field: 3850GS
Pulling force: 0.04kg
Working temperature: maximum working temperature 80℃
Single weight: 0.19g
Application: precision electronics, piling
Other size 2mm diameter magnets;
