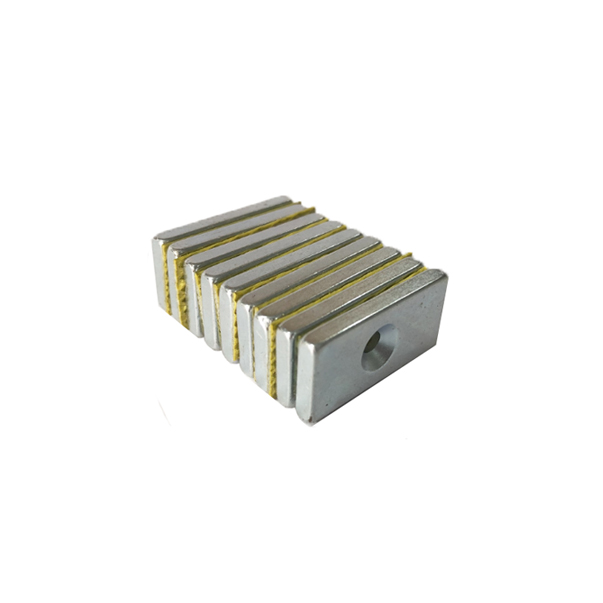

This product is a rectangular magnet with countersunk screw holes made of sintered NdFeB. The size is 25mm long, 13mm wide and 3mm thick. It is N35 grade. If it is not the same as what you want, we can also directly process it according to your size without expensive mold costs, welcome to consult.
In addition to this magnet with one hole, some magnets are also requested by customers to process multiple holes, which can be square, triangle, ring, arc, and irregular shapes. Welcome to provide drawings or data to us for price.
