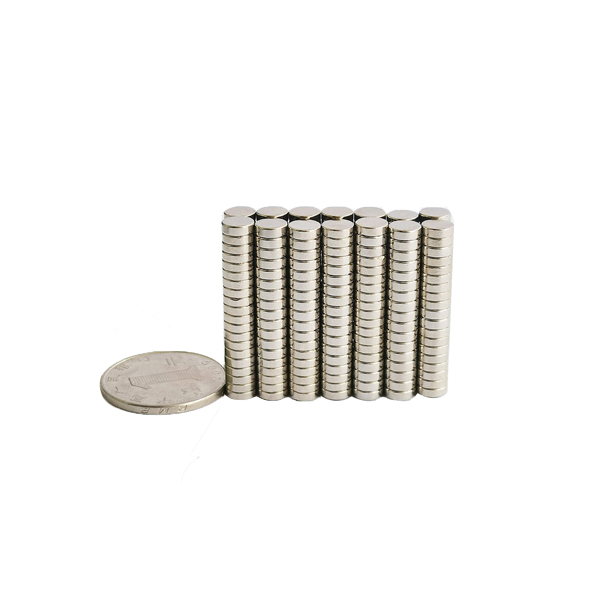

Product name: 1/4 x 1/16 inch strong magnet
size: 1/4" diameter x 1/16" thick (6.35mm x 1.59mm)
Material: NdFeB
Shape: round, disc
Magnetic grade: N35-N52
Maximum temperature resistance: 80℃
Plating: Nickel Copper Nickel
MOQ: 100 pcs
Support customization: yes
Pulling force: about 1.5 pounds
Our company is a magnet processing manufacturer from China. We can customize magnet material, grade, tolerance, temperature resistance, coating, etc. according to your requirements. Quality assurance, magnet performance is stable, and customers from all over the world are welcome to inquire.
Recommended small and thin magnets;
Ferrite grade, sintered ferrite magnetic property parameter table
NdFeB magnet grade, Sintered neodymium magnet performance grade parameter table
Neodymium(Ndfeb) Magnet Material Safety Data Sheet
Sintered Ferrite Material Safety Data Sheet Pdf
Magnetic properties grade parameters of smco rare earth magnets
This is a neodymium countersunk hole magnet with a diameter of more than 50mm, for neodymium iron boron material, belongs to the larger size, outer diameter of 60mm, height of 40mm, hole of 10mm....
60mm x 20mm large neodymium counterbore magnet parameters，Our company is a magnet supplier from China. We can customize all kinds of large size magnets and very small neodymium magnets. Welcome to consult and quote....
This sample is a semi-circular neodymium magnet, the performance grade is N40, the maximum working temperature is 80 ℃, the surface coating is nickel-copper-nickel, the appearance is silver-white, and the size can be customized. Industry experience, drawings and samples are customized according to industry needs, quality is guaranteed...
This is a diameter (radial) magnetization of small size ring magnet, material is sintered neodymium iron boron, performance grade is N48, is customized according to customer requirements, outer diameter of 7mm, hole 3mm, thickness of 3mm....
This is a small radial magnetic ring made of NdFeB N42 grade material, hollow cylindrical, OD 3mm, hole 1mm, height 3.2mm, radial magnetization, the product weighs about 0.15g, nickel-copper-nickel treatment, ±0.05mm tolerance, mainly used for vibration motors...
This is a neodymium material N38 grade made of a small ring-shaped powerful magnet, magnetic ring outer diameter of 5mm, hole 2mm, thickness of 1mm, through the axial magnetization, the product weighs 0.124g, the center of the table magnetic strength of about 2150 gauss....
This is a very small size rectangular block magnet with galvanized surface, 3mm length, 1.5mm width and height, with very fine tolerance, magnetized by lengthwise direction, mainly used in precision electronics, instrumentation, please contact us if you need to buy....
Flat magnets can be flat square magnets or round magnets. Today's sample is a flat rectangular magnet, with a length of 20mm, a width of 10mm, a thickness of 1.5mm, and a zinc coating on the surface. Thickness magnetization is used for thin workpieces. The use of this relatively flat neodymium rectangular magnet requires special attention....
