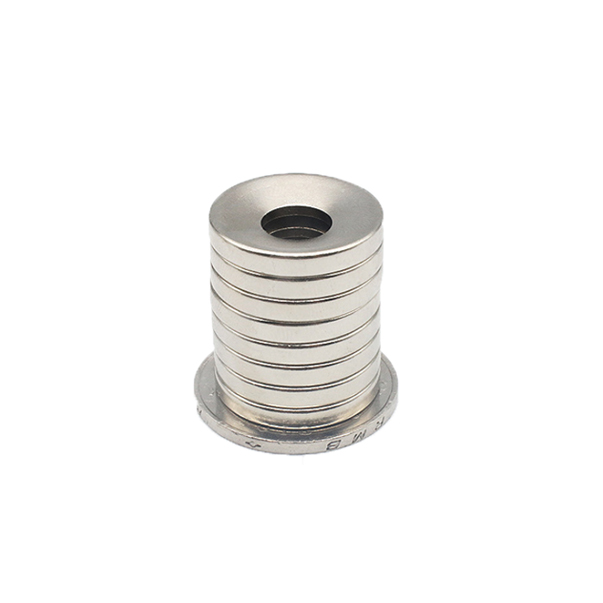

At first glance, do you think this is an ordinary ring magnet? In fact, it is a sinking ring neodymium magnet. The performance is N38 grade. The specific size is 20mm in diameter, 3mm in thickness, 8mm in the middle hole, and magnetized in thickness. is its schematic diagram.

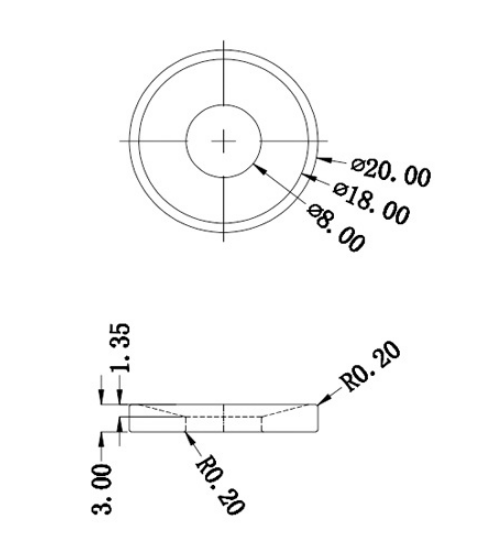

Sinking Hole Magnet 20 x 3 Middle hole 8mm drawing
More magnets with holes in the middle are waiting for you to choose: https://www.dgcourage.com/zhuanti/magnet-with-Hole-in-middle/
