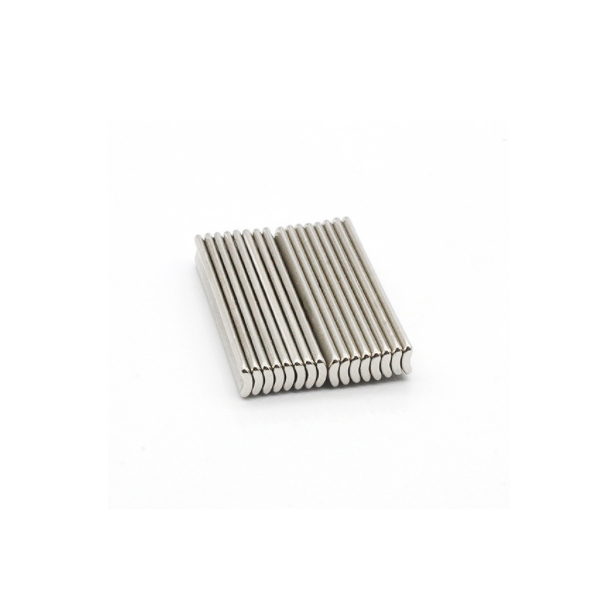

Height 31.3mm arc sectioned neodymium magnet introduction;
Manufacturer: Courage Magnet
Type of magnet: neodymium arc curved magnets
Magnet size: Curved magnet outer diameter 7.4, inner diameter 5, height 31.6, 90° See the drawing below
Surface coating: nickel copper nickel
Performance level: N38 (Support customized performance improvement)
Direction of magnetization: radial
Operating temperature: Maximum 80℃
Packaging: Scotch tape + white paper box + foam
Price: According to the actual size, performance grade, purchase quantity

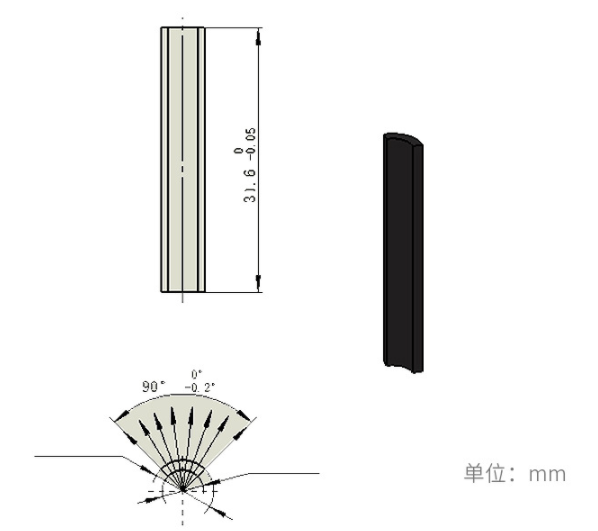

Ndfeb arc segment magnet radial D7.4 x d5 x 31.6 schematic diagram；
