A radial hollow cylindrical magnet is a specially designed magnet in which the magnetic field is generated in the radial (i.e., from the center to the outside) direction of the magnet. This type of magnet typically consists of a toroidal magnet with a hollow center portion, while the magnetic field is generated inside the hollow portion of the toroid.

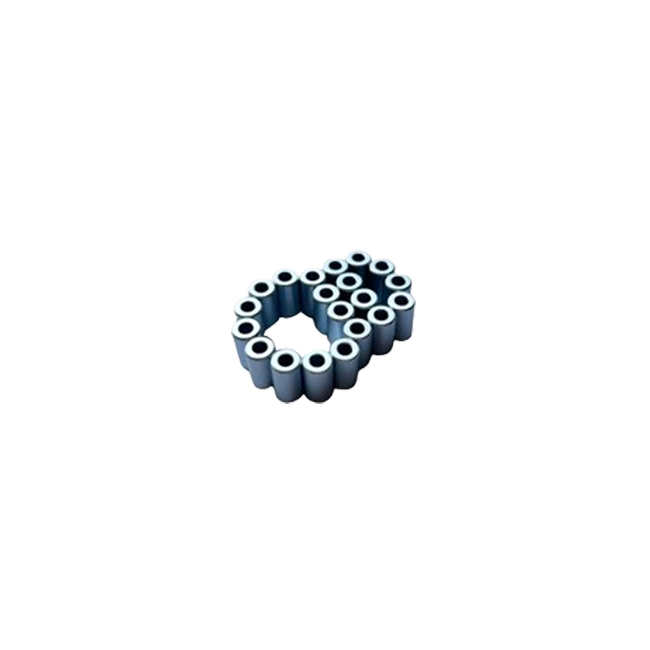

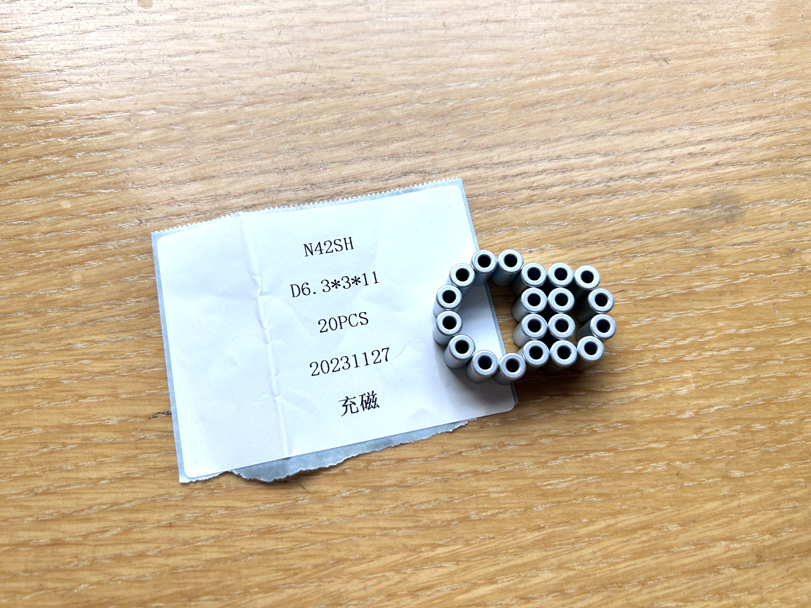

N42SH grade radial hollow cylindrical magnet 6.3x3x11mm for high speed motors
