Courage provides bonded neodymium magnets customization for foreign motor customers

Addtime:2022-02-23 15:21:36 Click:383

Bonded NdFeB is mainly prepared by mixing NdFeB powder and adhesive (epoxy resin, nylon, polyphenylene sulfide, etc.) through pressing, injection molding and extrusion molding. This preparation process enables the magnet to be easily fabricated into various complex shapes, has very high dimensional accuracy and uniform magnetic properties, and has high product batch consistency and repeatability. At the same time, the magnet also has the advantages of strong anti-oxidation ability and large degree of freedom in the direction of magnetization. Bonded NdFeB magnets are mainly used in various micro motors in the fields of computers, printers, household appliances, power tools, and automobiles.


Our company (Courage Magnet) can provide bonded NdFeB quotation, proofing, and mold opening services according to customer drawings or samples. At present, we also have many customers in Zhongshan who use bonded NdFeB. If you need, we can also come to your door. Visit face-to-face communication!


Our company has advanced production equipment, testing instruments and technical capabilities, which can continuously meet the low-cost needs of customers. Large-scale industrial production ensures the supply capacity and effectively reduces the unit cost of products.


The shape of bonded NdFeB can be divided into: tile type (motor magnetic tile), cylinder, ring (ring magnet), square (square magnet), special-shaped magnet, etc.

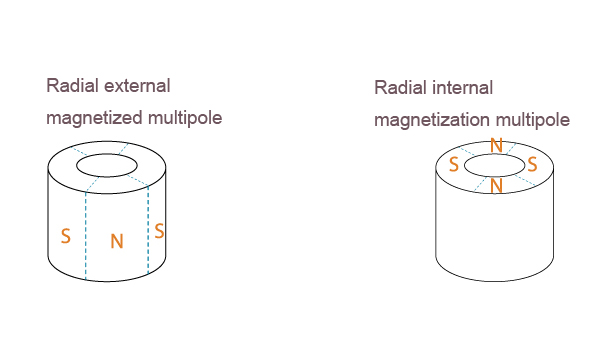

The following picture shows the common magnetization method of bonded NdFeB rings (external charging multi-pole, inner charging multi-pole)

Magnetization mode of bonded neodymium magnet


If you are not clear about the technical indicators of the products you need, please feel free to contact us, we will provide relevant technical consultation and design services according to your needs, and improve relevant products and technical solutions for you.


Relevant motor magnets;

Motor Arc magnet

Multipole Magnets
