What is a radial ring magnet?

Addtime:2022-02-21 11:10:06 Click:384

Ring magnets Radial magnetic rings, also known as radial ring magnets, have their strong magnetic surfaces on the side of the ring magnets, and are mostly used in toys, motors, sensors, and Hall induction fields. Today, I will tell you about this radial ring in detail. Common materials, specifications, and magnetization diagrams of magnets.


What are the materials of radial ring magnets?

At present, NdFeB and ferrite are mainly used on the market, including sintered NdFeB radial ring magnets, injection molded NdFeB radial ring magnets, sintered ferrite radial ring magnets, and injection molded ferrite diameter ring magnets. For ring magnets, you can choose the right material according to your product needs.


Schematic diagram of the magnetization of a radial ring magnet

magnetization of a radial ring magnet


The above picture mainly shows the magnetization method of radial multi-pole ring magnets. The magnetization method of ordinary radial ring magnets is as shown in the figure below.

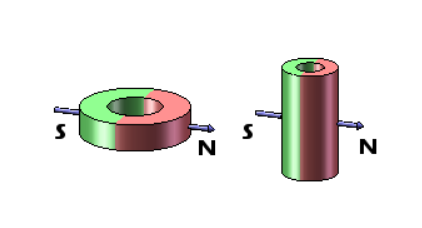

Radial ring magnet magnetization direction

The above is the application, common materials and magnetization diagram of radial ring magnet. Customers who need radial ring magnet and radial multipole ring magnet are welcome to inquire.
