Four types of industrial magnets

Addtime:2024-10-28 16:10:01 Click:325

Industrial magnet is called industrial monosodium glutamate, which is widely used. Industrial magnets can be divided into: aluminum nickel cobalt magnet, ferrite magnet, samarium cobalt magnet and neodymium iron boron magnet.


Description of characteristic parameters of four types of industrial magnets

CharacteristicunitAlNiCo

Ferrite

Rare Earth Magnet

  AlNiCo

Sintered    Ferrite

Bonded  Ferrite

Sintered  Smco

Bonded      Smco

Sintered    Ndfeb

Bonded      Ndfeb

Residual InductionkG11.54.43.111.68.514.27.3
Intrinsic CoercivitykOe1.73.53.0>5.311>119
Maximum Energy ProductMGOe114.62.232174811
Temperature Coefficientα%/K-0.02-0.18-0.18-0.0.3-0.03-0.11-0.10
Curie Temperature845460460795795335335
Flexure Strengthkgf/mm228136126256
Hardness
650530
55080-12060080-120
Electrical ResistivityμΩ.cm60>1010
804400015026000


Description of Industrial Magnet Characteristics Distribution

Description of Industrial Magnet Characteristics Distribution

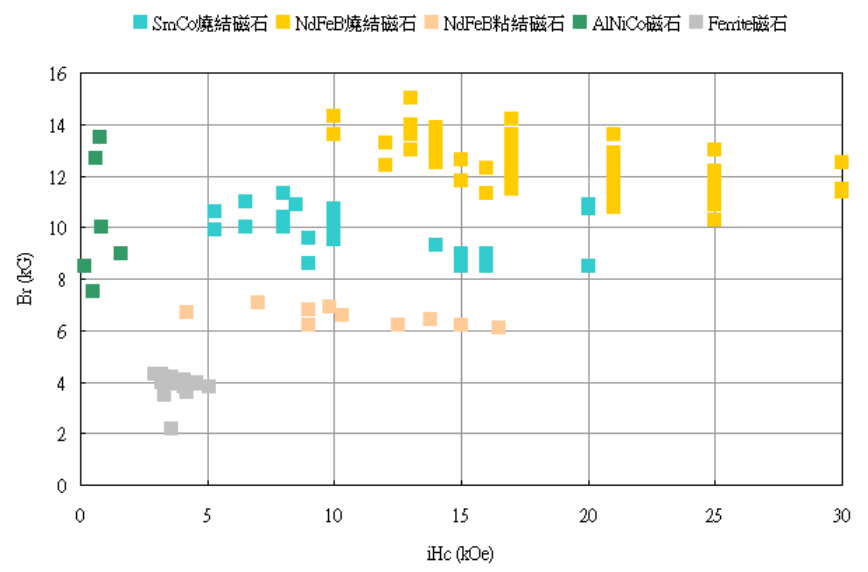

For the permanent magnets commonly used in the market, we have aggregated the following figure to compare the characteristic distribution. The higher the upper right, the higher the magnetic energy product. It can be seen that the magnetic advantages of NdFeB sintered magnets over other magnets, and the magnetic advantages of NdFeB bonded magnets over Ferrite magnets.


Description of the advantages and disadvantages of industrial magnets

NdFeB Strong Magnet has obvious performance advantages in all aspects, but the disadvantages are low temperature resistance coefficient and easy oxidation.


Ferrite Magnets are cheap and versatile, but the disadvantage is that they have a low magnetic energy product.


AlNiCo magnets has a good temperature coefficient, but the disadvantage is that it is relatively brittle and the price is not low.


Samarium Cobalt Magnets temperature coefficient and magnetic energy product are relatively balanced, but the disadvantage is high price.


Magnet users can choose suitable magnets according to their own needs and magnet characteristics.


Summary: The four types of industrial magnets have their own advantages and disadvantages.
