What is an N52 magnet ? What is the meaning and standard ?

Addtime:2022-05-31 15:27:37 Click:703

During the period of doing foreign trade, I found that many foreign customers prefer the N52 grade of neodymium magnets. Whether it is square, rectangular, ring or arc magnets, they all like to choose the N52 grade. Today we will share with you what is an n52 magnet, what is the meaning and standard ?


What is n52 magnet and what is the verification standard?

N52 magnets are the highest grade of neodymium magnets currently available in China. They have stronger magnetic force with other grades of neodymium iron boron at the same size and can be processed into various common and irregular shapes, which is what we call special-shaped neodymium. Magnets are also relatively expensive.


What is the approval standard for n52 grade magnets?

Magnet grade or magnet grade is determined by four physical characteristics: remanence Br, coercive force Hcb, intrinsic coercive force Hcj, and maximum magnetic energy product (BH) max.


For example;

Let's take the N52M grade as an example.

N: stands for the abbreviation of NdFeB, a neodymium iron boron material.

52: represents the maximum magnetic energy product 52MGOe.

M: Represents high coercivity and can withstand temperature up to 100°C

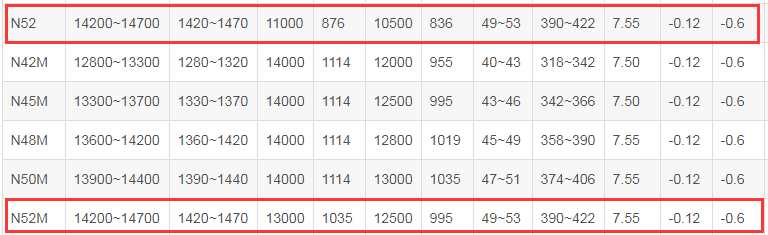

Number meaning of 52

Number meaning of 52


We can see that the remanence data of N52/N52M is the same as the maximum magnetic energy product data. The remanence and maximum magnetic energy product of N52 are higher than those of N35-N50, indicating that its magnetism is stronger than that of N35-N50.


Advantages of using n52 magnet;

Make products smaller


Conclusion;

The remanence determines the maximum magnetic energy product, and the higher the magnet grade number, the stronger the magnetism. The coercivity and intrinsic coercivity determine its maximum working temperature. The higher the coercivity, the higher the working temperature.
