Is there any magnetic force on the inner diameter surface of the radially outer magnetized ring magnet? Are you also curious? Today, the Chinese magnet supplier Courage will introduce this problem to you.
Recently, a customer just happened to ask this question, so today I went to the sample display cabinet and took a few multi-pole magnetic rings for actual measurement.
8-pole ferrite magnet magnetized by outer diameter,The magnetic field strength of the radial plane is 1800 Gauss

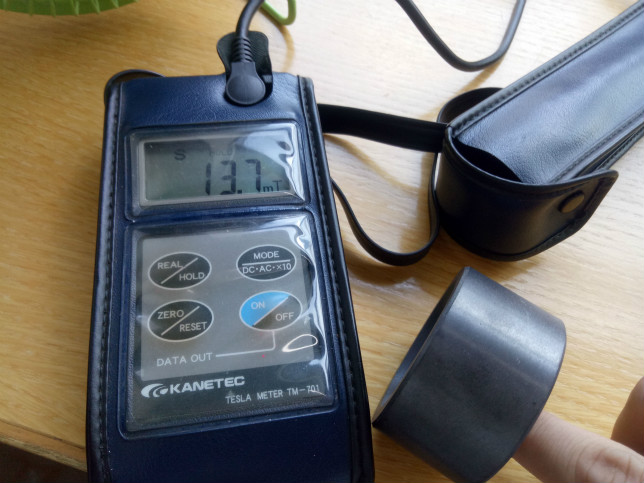

The figure below shows the measurement of the magnetic field strength of the inner diameter of the ferrite, about 130 Gauss.
Through actual tests, it can be seen that the inner circle of the radially outer multi-pole annular magnet also has magnetic force, but it is much smaller. At present, there is also a radial ring, which can achieve inner and outer monopole magnetization.
Our company is a professional manufacturer of motor magnets in China. Customers who need to purchase multi-pole ring magnet motors magnetized by outer diameter or inner diameter are welcome to contact our company.
