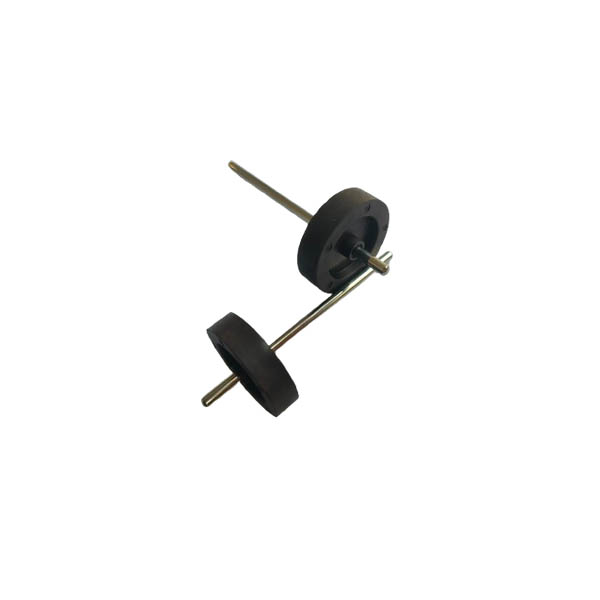

This is a multi-pole ferrite magnetic assembly, composed of injection molded ferrite + shaft, also known as injection molded ferrite magnetic rotor magnet, rotor OD 29.8mm, height 7.5mm, shaft 3.17mm, measured surface magnetic field strength up to 1580 gauss, suitable for automation equipment, permanent magnet DC motors, inverter air-conditioning motors, instrumentation motors, electrical appliances and so on, spot samples are available, welcome to inquire.

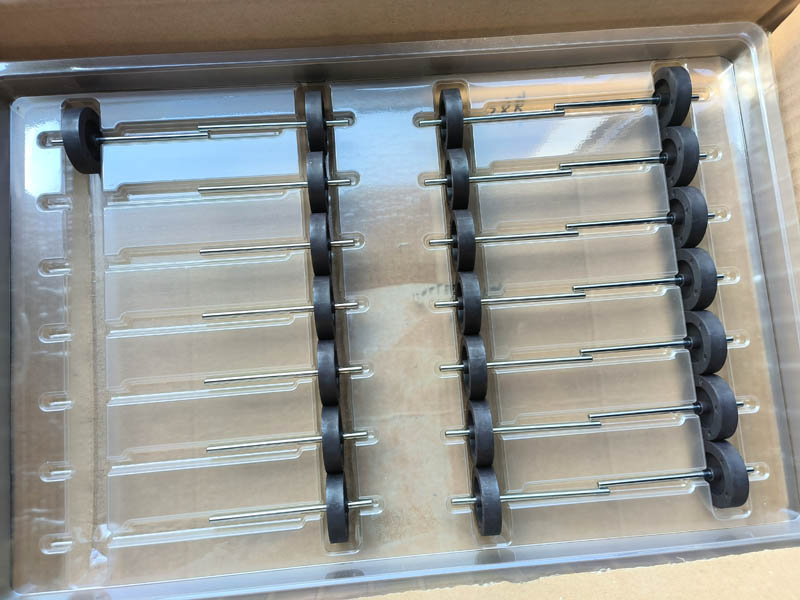

Injection molded ferrite rotor magnet 29.8x3.17x7.5mm package picture
Browse more multi-pole magnets used in electric motors: https://www.couragemagnet.com/motor-multipole-magnets/
