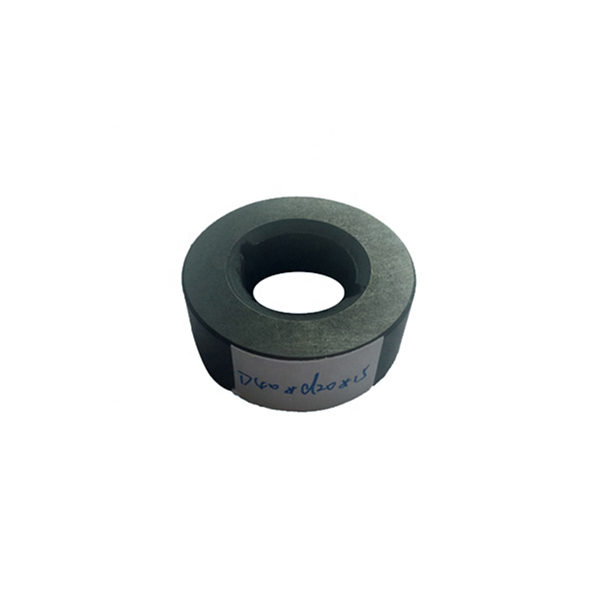

8 pole ferrite rotor magnet ring 40mm x 20mm x 15mm

This is a radial 8-pole ring magnet, the material is sintered ferrite, grade Y30, the size is 40mm outer diameter, 20mm inner diameter, 15mm thick, mainly used for some high-performance permanent magnet DC motors, similar 8-pole rotor magnets Our company also has many specifications, the number of m
Products Inquiry

PRODUCT INFORMATION

This is a radial 8-pole ring magnet, the material is sintered ferrite, grade Y30, the size is 40mm outer diameter, 20mm inner diameter, 15mm thick, mainly used for some high-performance permanent magnet DC motors, similar 8-pole rotor magnets Our company also has many specifications, the number of magnetic poles, you are welcome to consult the sample or bulk price.


Partially sintered ferrite radial 8-pole magnetic ring Specifications:

D53.7*d35*25mm

D15*d8*5mm

D45.5*d25.5*25mm

D15*8.1*6mm

D18*6*6.5mm

D70 *45*40mm

D69.5*48*40mm

D74*51*35mm


If you want to know more please leave us a message or email!
