This is a single-sided multi-pole magnetized ring magnet, only one side is magnetic, there are 4 poles on the surface, 2 N-pole, 2 S-pole, the material is injection molded ferrite, the outer diameter size of 17mm, the thickness of 4.5mm, the surface magnetic strength of about 1140 gauss, such as this size is suitable for you can contact us to provide you with a quote, you need other sizes you can consult, we have a lot of smaller or larger multi-pole magnetic ring We also have many smaller or larger multi-pole magnetic rings.

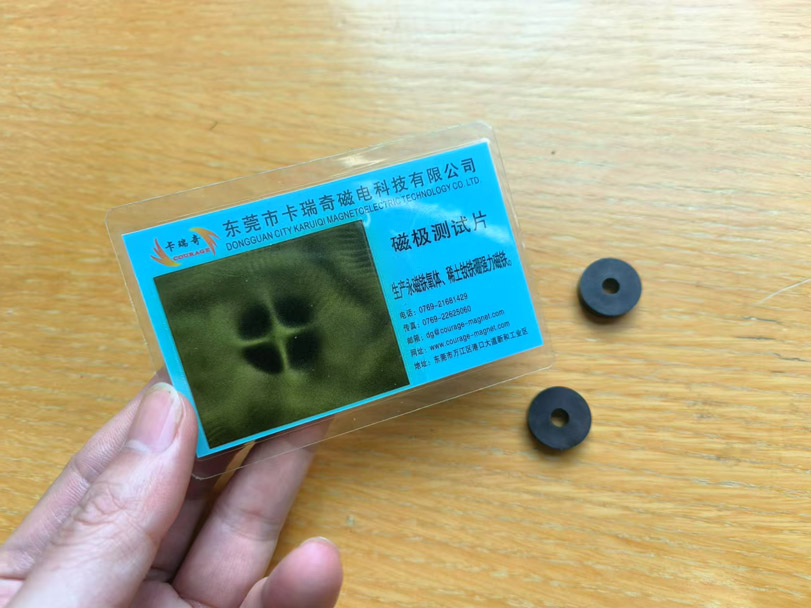

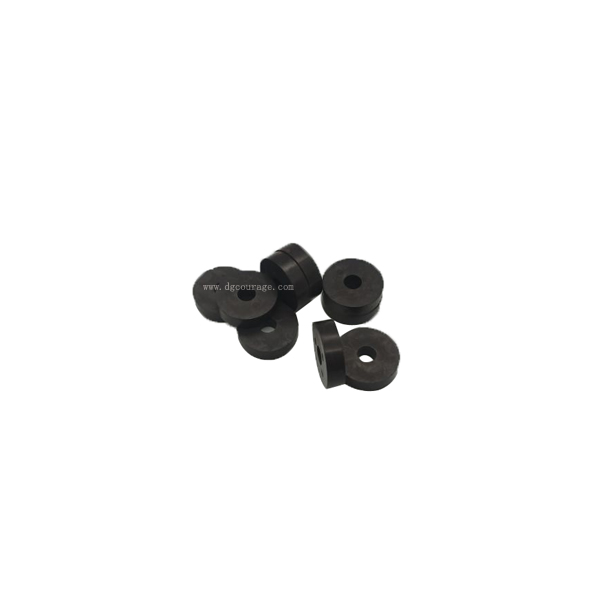

Single-sided 4-pole ferrite ring 17x4.5mm physical sample pictures
Go to Carich Magnet manufacturer injection molded ferrite magnet column for more shape specifications.
More 4-pole injection molded ferrite magnet recommended;
4 pole plastic injection molded ferrite magnets 9.5 x 3.15 x 3 mm
4 pole ring Injection magnet for pushrod motors 22 x 7 x 4 mm
Ferrite grade, sintered ferrite magnetic property parameter table
NdFeB magnet grade, Sintered neodymium magnet performance grade parameter table
Neodymium(Ndfeb) Magnet Material Safety Data Sheet
Sintered Ferrite Material Safety Data Sheet Pdf
Magnetic properties grade parameters of smco rare earth magnets
This is a single-sided multi-pole magnetized ring magnet, only one side is magnetic, there are 4 poles on the surface, 2 N-pole, 2 S-pole, the material is injection molded ferrite, the outer diameter size of 17mm, the thickness of 4.5mm...
This product is a radial multi-pole ferrite rotor magnetic ring, photographed by Xiao Fu, a Courage magnet manufacturer in China. The magnet has 12 magnetic poles, 6 N poles and 6 S poles, and the magnetic field intensity can reach 1700 Gauss. The specific size of the magnet is 18mm outer diameter, 10mm aperture and 17.5mm height, and it is mainly used for permanent magnet DC motor....
This is a special magnetic ring for magnetic encoder, the material is injection molded ferrite, the surface has a raised structure, the outer diameter is 34.1mm, the hole is 18mm, the total thickness is 3mm, single side multi-pole magnetization (62 and 64 poles)....
This product is a high-performance 8-pole ring magnet with radial magnetization. The material is ferrite. It belongs to a ferrite multi-pole magnetized ring. The outer diameter of the magnet is 75mm, the inner diameter is 51mm, and the height is 35mm....
Our company is a manufacturer of permanent magnets for electric motors, we can provide you with multi-pole ring magnets made of various materials, you are now browsing this is an injection molded ferrite ring, OD 41mm, hole 35mm, height 24.5mm, radial 4-polar magnetization, surface magnetic strength of 750 gauss or so, there are molds and samples, welcome to inquire about the price....
Product Name: Motor Radial External Magnetized 12-Pole Magnet，Size: 12mm outer diameter, 8.5mm height，Number of magnetizing poles: 12 poles，Magnetic Field Strength: 1080 Gauss，If you need to buy radial multi-pole magnetized magnets, please contact our company, we are professional in making motor magnets, you can customize or find close to the sample size in us....
This product is a bonded multi-pole annular rare earth NdFeB magnet. The magnetization method is 12 poles on one side, and one side is almost non-magnetic. This magnet is one of our main products. Looking for ready-made samples of bonded NdFeB , Bonded NdFeB quotation, open mold, welcome to provide specifications or drawings to consult us....
This is a multi-pole magnetized bonded neodymium magnetic ring, mainly used in electric motors, the outer diameter of the ring is 25.8mm, the height is 40mm, it can be 4-pole or 8-pole magnetized, samples are available, welcome to inquire about price or other sizes....
