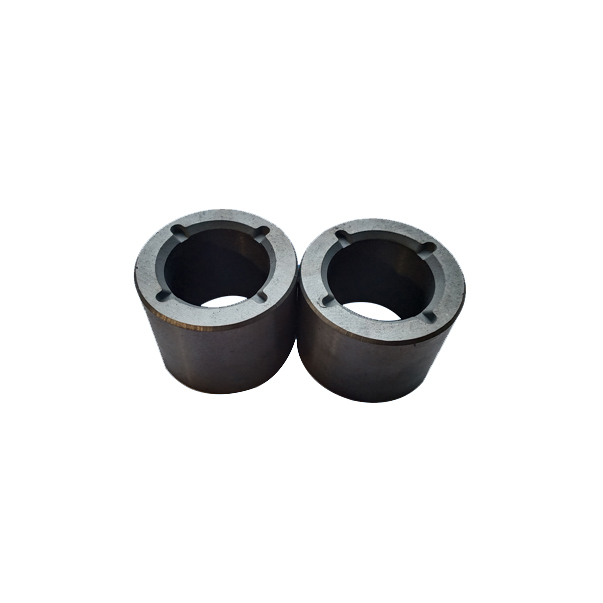

This product is a radial 8 poles rotor magnet, made of sintered ferrite, anisotropic, not easy to corrode, not easy to demagnetize, specifications and dimensions for the outer diameter of 54mm, inner diameter of 35mm, height of 40mm, customers interested in the product are welcome to consult the price, sample matters.
Our company is a professional manufacturer of motor magnets and can provide you with multi-pole ring magnets of various materials, such as sintered ferrite multipole magnets, injection-molded ferrite multi-pole magnets, bonded neodymium iron boron multi-pole magnets, and inductive magnets. There are too many specifications to be put on the shelves one by one. If you do not find the specifications that suit you on our website, please contact us to find magnets of similar or the same specifications for you.

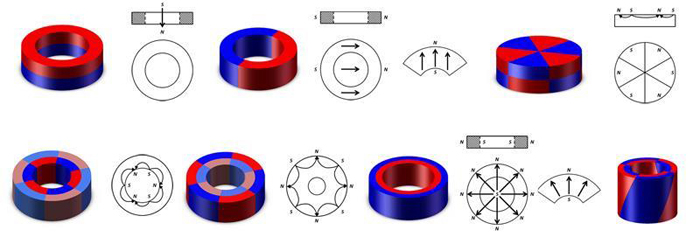

Schematic diagram of common magnetization methods of multipole magnets
Specifications of some of our sintered ferrite radial 8-pole magnetic rings:
D53.7 x d35 x 25mm
D15*d8*5mm
D45.5*d25.5*25mm
D15*8.1*6mm
D18*6*6.5mm
D70 *45*40mm
D69.5*48*40mm
Relevant 8-pole ring magnet samples;
