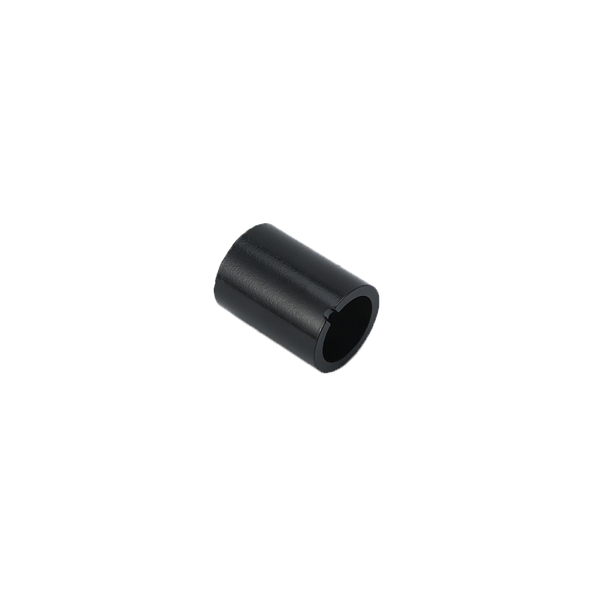

Black Coated Bonded Neodymium Ring 8 poles 35 x 29 x 45 MM

Introduction of bonded neodymium magnets with an outer diameter of 35mm, an inner diameter of 29mm and a height of 45mm; Brand: Courage Magnet,Magnetization method: radial 8-pole magnetization,Magnet Material: Bonded NdFeB,Surface magnetic strength: above 2000 Gauss,Plating: Black Epoxy,Can be customized: It can be customized on demand, including magnetic force, size, waveform.
Products Inquiry

PRODUCT INFORMATION

Buy or customize bonded neodymium magnets, multi-pole neodymium magnets, welcome to contact Courage magnet manufacturers in China, has been established for 12 years, the main product types are NdFeB, ferrite, can be divided into sintered NdFeB, bonded NdFeB, sintered ferrite, injection molded ferrite, etc.


Introduction of bonded neodymium magnets with an outer diameter of 35mm, an inner diameter of 29mm and a height of 45mm;

Brand: Courage Magnet

Magnetization method: radial 8-pole magnetization

Magnet Material: Bonded NdFeB

Surface magnetic strength: above 2000 Gauss

Plating: Black Epoxy

Can be customized: It can be customized on demand, including magnetic force, size, waveform.

Working temperature: The maximum working temperature of the bonded NdFeB magnet is around 150-160, depending on how many powders are pressed and molded, some are resistant to 120 degrees, the same as sintered NdFeB, and the temperature resistance is different for different grades.

Price: Consult customer service

Uses: Model aircraft motors, brushless motors, automation equipment, sensors.


Go to the Bonded Neodymium Magnet section to see more specifications and sizes.
