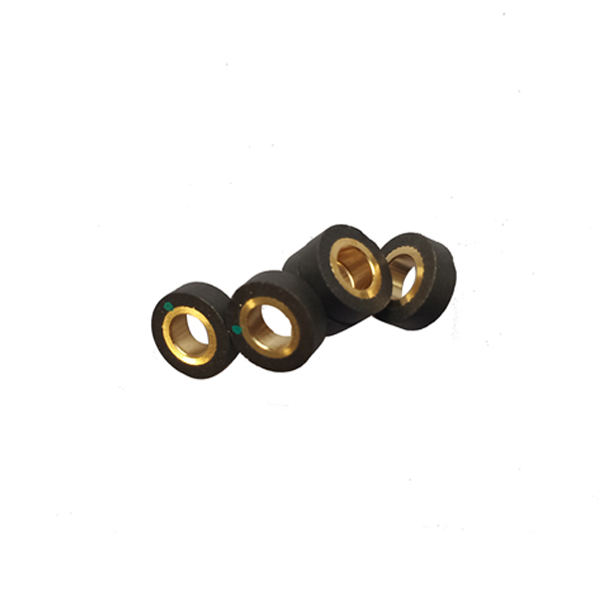

This product is an injection-molded ferrite ring magnet with a surface magnetic field strength of about 700 gauss. The injection-molded magnet includes anisotropic magnets and isotropic magnets, mainly anisotropic, mainly used for DC motors, small generators, relays , Hall sensors, air conditioners, ceiling fans, robots, etc.
What are the characteristics of injection molded ferrite magnets?
1. It has hardness and elasticity, and can be processed into thin rings.
2. One-time axial injection molding to simplify assembly and ensure accuracy. Complex shapes and precise tolerances
3. Under hot melt conditions, they have uniform density and good consistency
4. It is made of mixed injection molding of ferrite powder and plastic binder.
5. Excellent corrosion resistance due to ferrite powder covered with plastic binder
6. Density: 3.6-3.8g/cm3
7. Working temperature range——40℃——150℃
Motor customers who are interested in this product are welcome to consult us. We can provide similar or the same specifications of injection molded ferrite magnets and accept customization.
