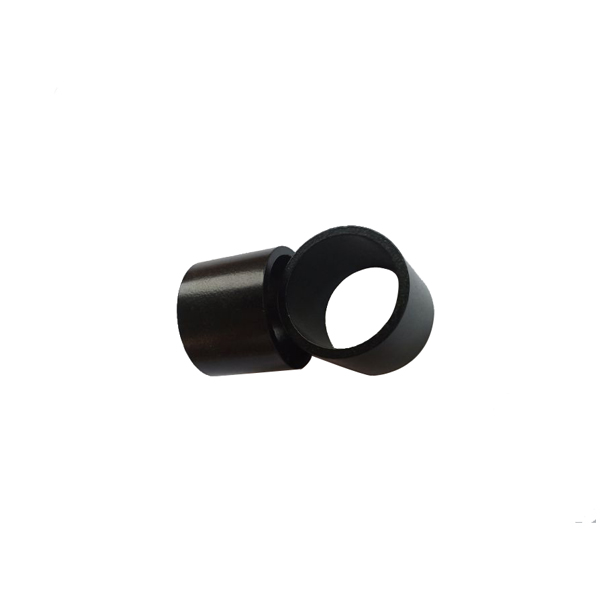

This product is a radially magnetized 10-pole (5N5S) ring magnet, the material is bonded NdFeB, the surface coating is black epoxy, the magnet size is 27mm outer diameter, 22.7mm inner diameter, 21mm height, if you feel this specification If you are interested, you can contact our company for a quotation, provide samples, and customize the magnetic properties, number of poles and other materials.
Bonded NdFeB magnets have high dimensional accuracy and good magnetic uniformity and consistency. They can be made into complex shapes that are difficult to achieve on sintered NdFeB magnets, and are easy to be integrated with other metal or plastic parts. Bonded NdFeB magnets also have the characteristics of various magnetization methods, low eddy current loss and strong corrosion resistance.
View More Bonded Multipole Magnets: https://www.dgcourage.com/zhuanti/bonded-neodymium-magnets/
