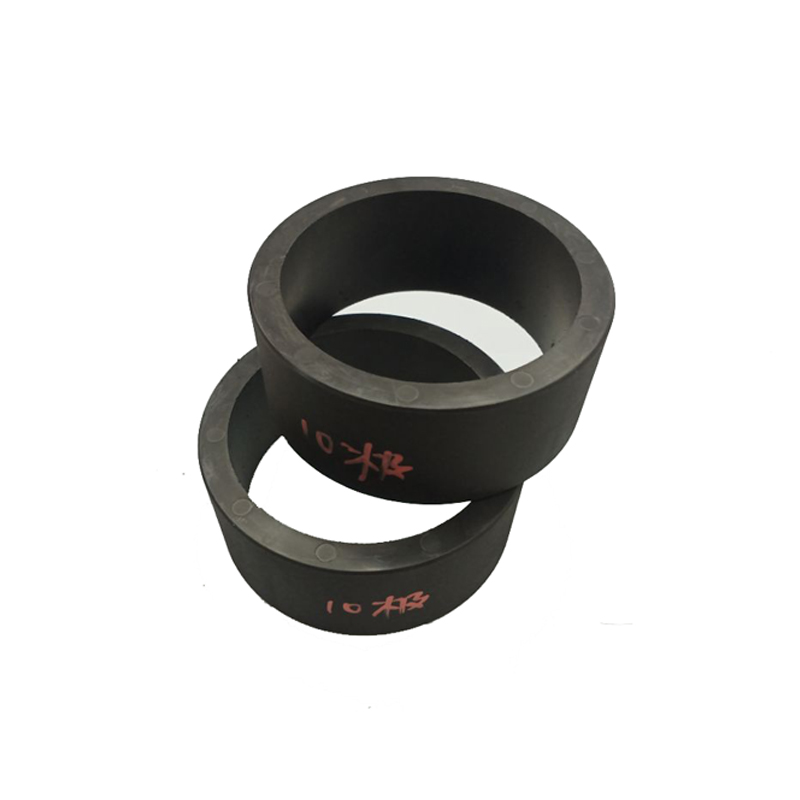

This product is an injection molded ferrite magnetic ring with an outer diameter of 111mm, an inner diameter of 91mm and a height of 45mm. It is a large-size multipole ring magnet, which can directly replace multiple pieces of ferrite arc magnets (magnetic tiles). The magnets can be filled with 8 or 10 poles. The magnetic properties are up to, noise reduction, convenient installation and good dynamic balance. We welcome the samples of motor customers to make inquiries.
Customers interested in this kind of magnet material can go to the injection molding ferrite magnet column to see more size samples.
