To buy multi-pole injection-molded magnets, welcome to contact the professional motor magnet manufacturer Courage. Our company has many ready-made molds. The one provided today is made of injection-molded ferrite, with radial 24-pole magnetization, surface magnetism of about 870 Gauss, with copper The size of the sleeve is 22mm outer diameter, 6mm inner hole, 9mm total thickness, and even magnetic distribution line, welcome to the United States, Iran, Germany, France, Italy, the Netherlands, Belgium, Luxembourg, Ireland, Greece, Spain, Portugal, Austria, Finland, etc. National motor customers consult us for prices, samples.

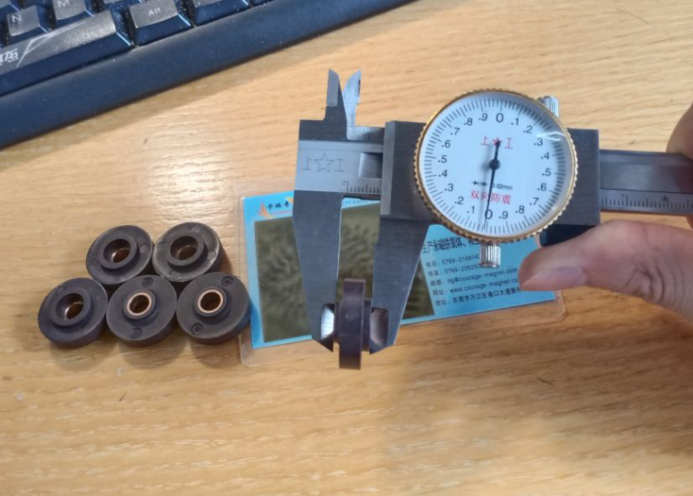

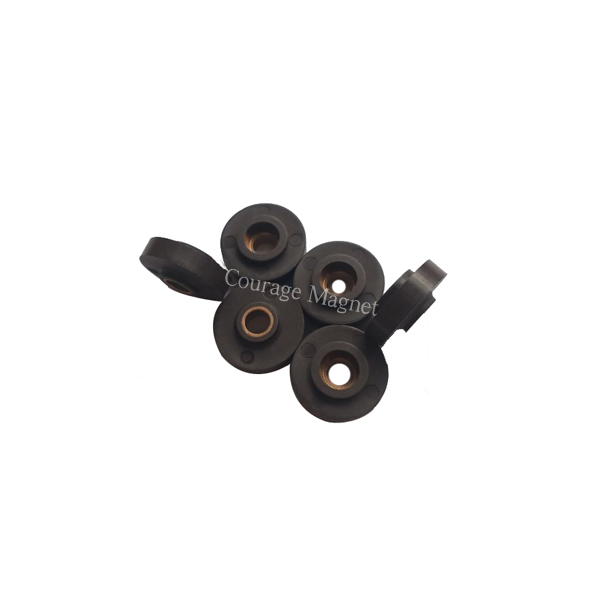

24-pole injection molded ring magnet 22 x 6 x 9 mm sample
Injection magnets can process various special and complex shapes (such as steps, damping grooves, holes, positioning pins, etc.), have strong corrosion resistance, do not require surface coating protection, and can withstand temperature 20-150 degrees without demagnetization. Mainly used in automation equipment, water pumps, sensors, permanent magnet DC motors, DC fans, inverter air conditioner motors, instrument motors and other fields.
Injection-molded ferrite multipole magnets are less fragile but have weaker magnetic force than bonded neodymium magnets.
