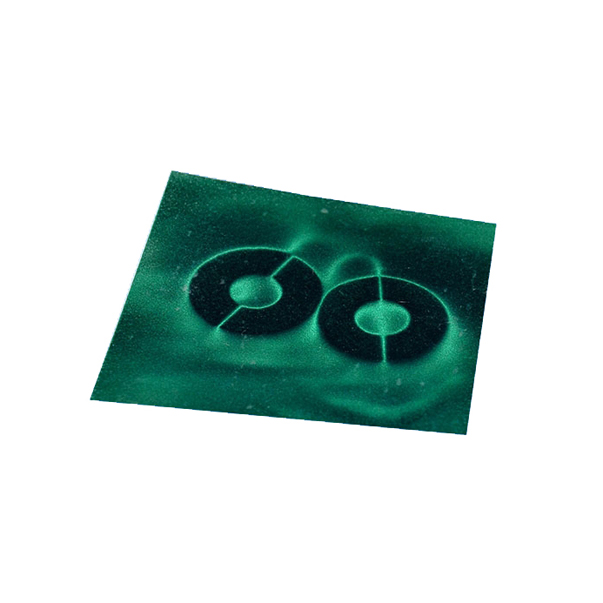

Introduction of 2 pole ferrite ring magnet
Brand Name: Courage
Authentication: MSDS, SGS
Magnetization direction: axial or radial orientation can be available
Magnet specifications: customized according to requirements.
Sample Provision: Off-the-shelf specifications can provide samples free of charge,
Multipolar magnetic rings are magnetized by special magnetizers on the top of hard magnetic rings. The effect of magnetization is related to the properties of magnetic rings and magnetizers. The magnitude of magnetic energy product and hysteresis attenuation are related to the above situation.
Dongguan Courage Magnet Factory specializes in the production of motor magnets, motor multi-pole magnetic rings, injection moulding multi-pole ferrites. Welcome to inquire for samples or open-die customization.
Recommended reading: Axial 2 pole magnetization schematic sharing
