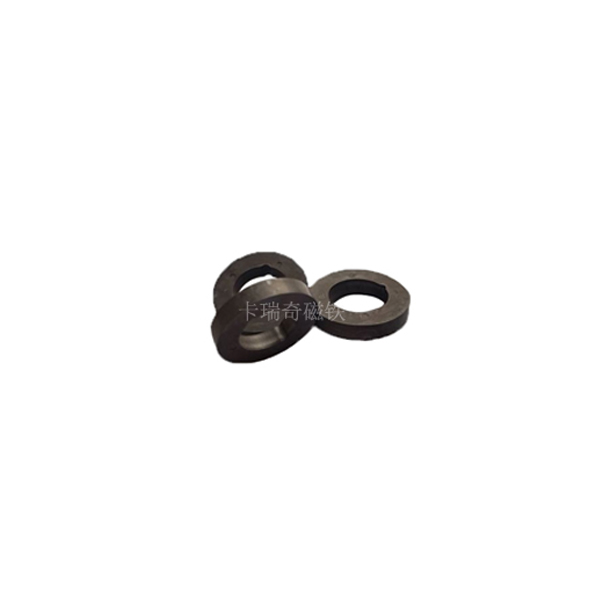

Magnet name: motor encoder radial 8 pole magnetic ring magnet
Specification size: Outer diameter 22.2mm, inner hole 13mm, thickness 4mm
Magnetization mode: radial 8-pole (4n4s)
Material: injection molding magnetic
Surface magnetic strength: 1230-1250GS
Product Application: all kinds of high speed motor encoder speed measurement induction
Sample supply: Support
Open mold customization: Support
Export: Support

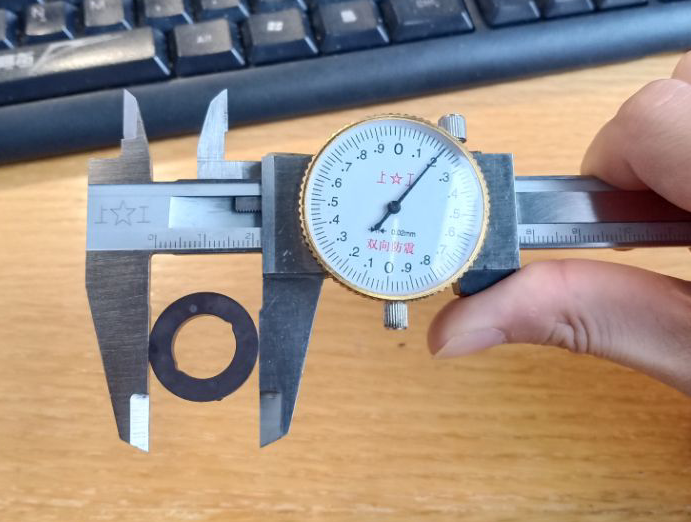

Encoder radial magnetic ring D22.2 x 13 x 4 mm outside diameter measurement
