Inner circle 8 pole radial magnetized ring neodymium magnet OD 50MM

Product name: Radial 8 pole inner diameter magnetized ring NdFeb magnet, Specifications: Outer diameter 50mm, inner diameter 44mm, height 20mm, Appearance Color: Black, Coating: black epoxy, Magnet material: bonded NdFeb, Number of magnetic poles: 8, Strong magnetic surface: inside diameter of magnetic ring
Products Inquiry

PRODUCT INFORMATION

Product name: Radial 8 pole inner diameter magnetized ring NdFeb magnet

Specifications: Outer diameter 50mm, inner diameter 44mm, height 20mm

Appearance Color: Black

Coating: black epoxy

Magnet material: bonded NdFeb

Number of magnetic poles: 8

Strong magnetic surface: inside diameter of magnetic ring

Application: permanent magnet brushless DC motor

Magnetic field intensity: about 2020 Gauss

Features: Strong magnetism, precision tolerance, high cost performance.

Our company is a supplier of motor magnet in China. For this kind of multi-pole ring magnets (NdFeb ferrite), we have more ready-made molds, which can save the cost of magnet mold opening for you. If your company needs this kind of magnet, you can contact our company to provide you with sample testing and quotation.

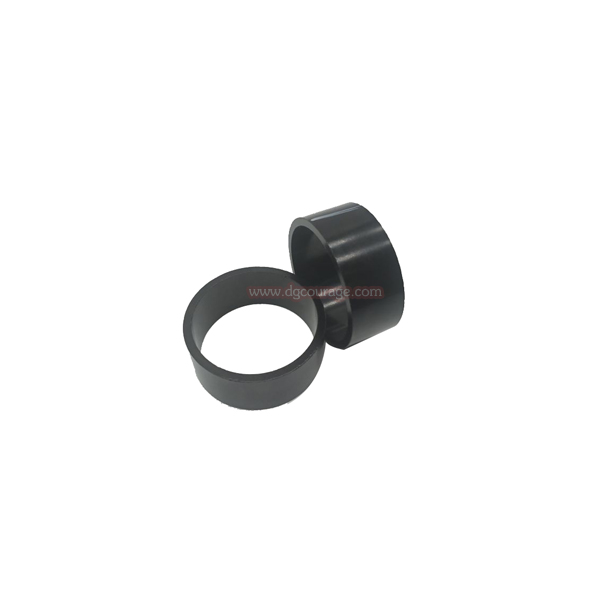

8-pole magnetized ring neodymium magnet D50x44x20mm physical sample;

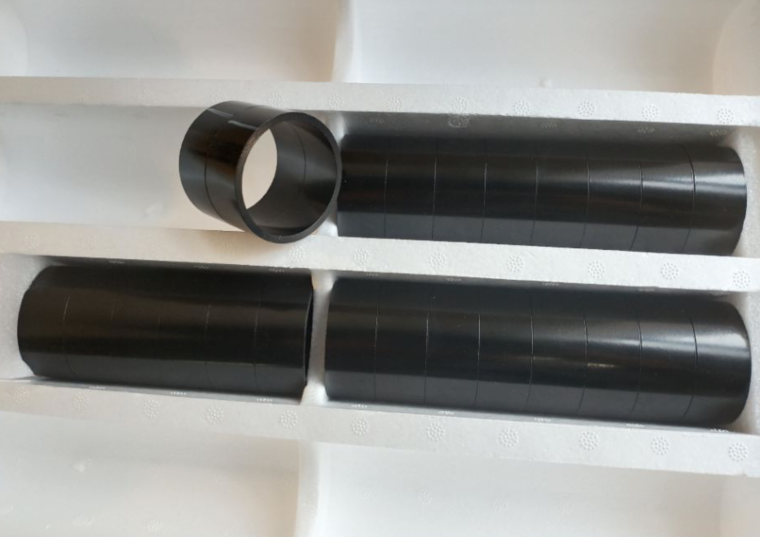

8-pole magnetized ring neodymium magnet D50x44x20mm physical sample


Check out the Multipole Bonded Neodymium Magnet column for more sample pictures.
