N52 D4mm neodymium magnetic ball product specification；

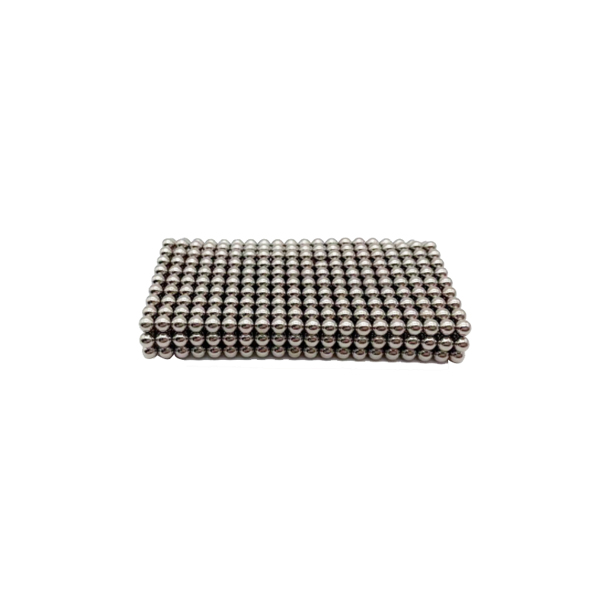

Appearance: as shown
Material: N52
Remanence Br: 1.45T 14.5KGs
Coercivity Hcb: 988.3 kA/m 12.42kOe
Intrinsic coercivity Hcj: 996.6 kA/m 12.52kOe
Maximum magnetic energy product (BH) max: 50.31MGOe
Size: 4mm in diameter
Plating: Nickel Copper Nickel
Magnetization direction: Thickness magnetization
Surface Magnetic Field: 3500GS
Pulling force: 0.1kg
Working temperature: maximum working temperature 80℃
Single weight: 0.2g

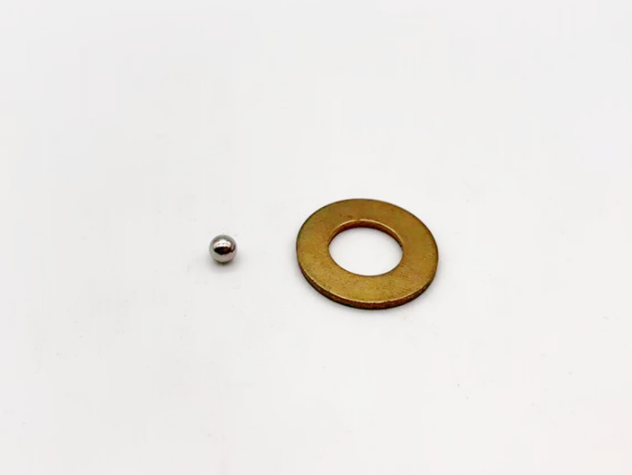

4mm magnetic ball real shot pictures;
Note: Neodymium strong magnet products are brittle, so avoid impact when using, otherwise it will collapse and cause damage to the product.
