N35 D5*4-2.5 magnet product specification;

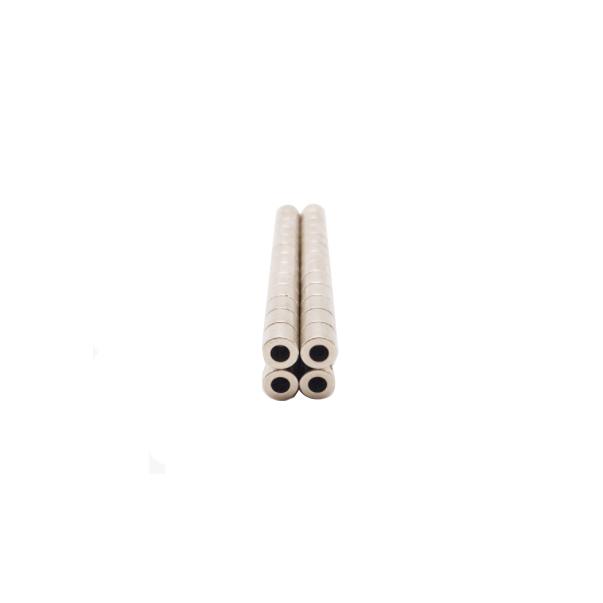

Appearance: as the main picture
Type of magnet: Ring magnet, Magnet with hole in the middle
Material: Neodymium N35
Remanence Br: 1.197T 11.97KGs
Coercivity Hcb: 918.2 kA/m 11.54kOe
Intrinsic coercivity Hcj: 1097 kA/m 13.78kOe
Maximum magnetic energy product (BH) max: 34.67MGOe
Size: diameter D5mm* thickness 4mm-center hole 2.5mm
Plating: Nickel Copper Nickel
Magnetization direction: Thickness magnetization
Surface Magnetic Field: 2650GS
Pulling force: 0.16kg
Working temperature: maximum working temperature 80℃
Single weight: 0.45g
Price: please send an inquiry
