What is a C8 magnet? Grade 8 ferrite magnet related introduction

Addtime:2022-06-22 15:48:56 Click:519

Some netizens don't know about C8 magnets. It doesn't matter. Today, the supplier of Courage magnets will explain to you.


C8 magnets, also known as ferrite magnets, C is the meaning of ceramics, which is the American standard. We generally start with Y in China, such as Y10, Y25, Y30, Y30BH, Y35, etc., but the names are different, C8 grade The ceramic magnets correspond to our domestic Y30H-1 grade.

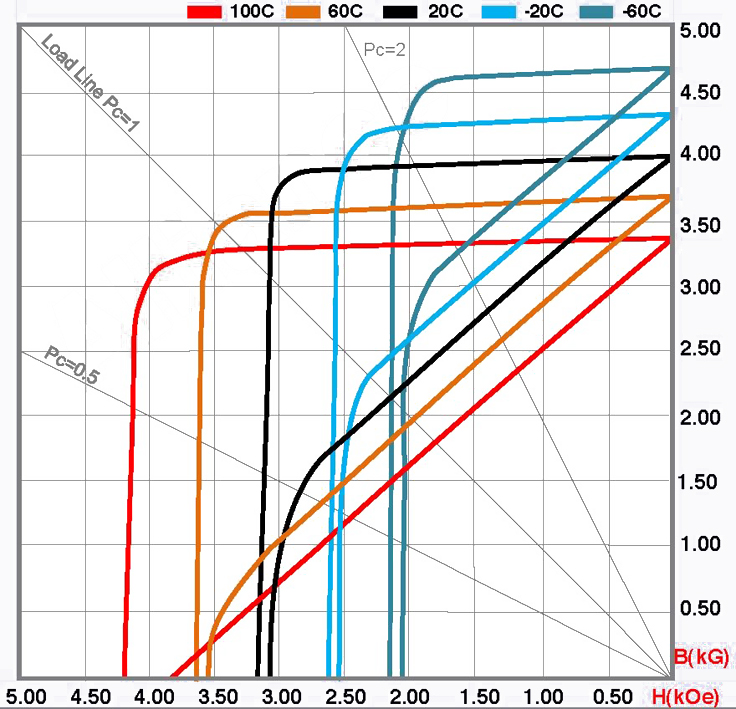

Ceramic 8 Ferrite Magnet Performance Curve

Ceramic 8 Ferrite Magnet Performance Curve

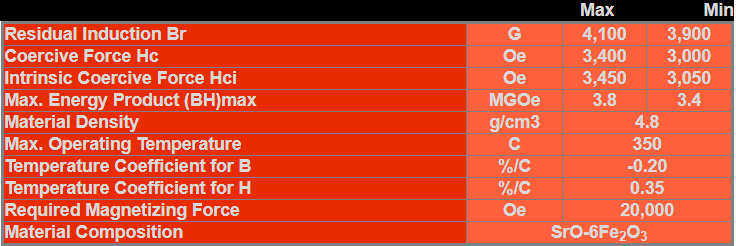

C8 magnet magnetic performance parameters

C8 magnet magnetic performance parameters


The above introduces you what is c8 magnet and the relevant magnetic performance parameters of C8 magnet (remanent magnetism, coercive force, intrinsic coercive force, maximum working temperature) and other information. If you need a quotation for C8 magnet, you can contact us for customization.
