Main shape and use of radial magnetized permanent magnet

Addtime:2022-04-11 10:10:13 Click:482

Radial magnetization permanent magnet is mainly because its magnetization method is radial, and the maximum magnetic force surface is on the side. The reason why radial magnetization is used is to meet the needs of different customers. The following is an introduction to the shape and function of radial magnetization permanent magnets.


At present, most of the customers of radial magnetized ring magnets use two kinds of materials: NdFeB and ferrite. Customers need to evaluate the magnetic requirements, price and temperature of the magnets according to their own products, and choose the material that suits them.


Radial magnetized circular/cylindrical magnets: Mainly used in sensors, magnetic toys, clamping devices.

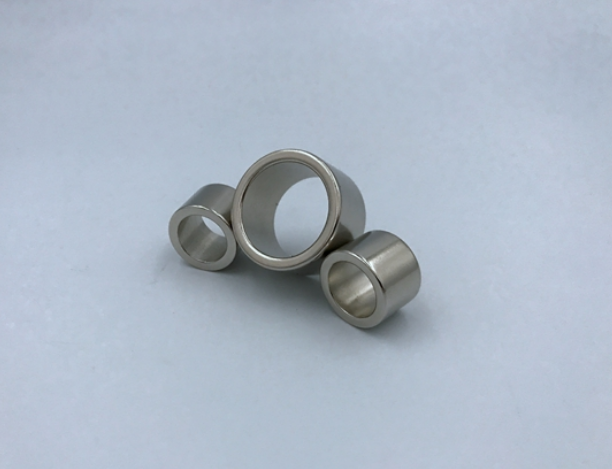

Radial magnetized ring magnets: mainly used in motors, Hall induction, speed measurement, encoders, storage, engines.



Radial magnetized arc magnets: mainly used in DC motors, magnetic pump, industrial motor.


You may say why there is no radially magnetized square(block) magnet, in fact, the square magnet is mainly about length or width or thickness magnetization.


The above is the introduction of the main shapes and applications of radially magnetized permanent magnets. Our company can provide customers with ordinary radially magnetized and multi-pole radial magnets. Customers are welcome to inquire.
