Some friends have asked whether the magnet is strong or weak. Today, I will share with you the popular science.
Whether the magnet is strong or weak depends on the magnet material
Different people have different ideas about strong magnetism. Some people even connect strong ferrites together, which is actually wrong. Generally speaking, strong magnetism refers to NdFeB magnets (a rare earth magnet) by default. , while ferrite is called general magnetism.
Is it feasible to use a Gauss meter to measure the Gauss of a magnet to determine whether the magnet is strong or weak?
Basically feasible, why say basic? Mainly because there is a knowledge that many people do not know, that is, the Gauss value of a magnet is inversely proportional to the size of the magnet, and the Gauss value measured by a large NdFeB magnet will not be larger, such as seven or eight hundred, There are thousands of Gaussians, and ferrite can also reach this value. Generally, the surface magnetic field strength of NdFeB will be higher than 2000 Gauss, while the general magnetic field of ferrite will be lower than this value.
Some people still don't understand, let's take a look at the difference between them.
First of all, we first distinguish the primary color of NdFeB from gray and white. After the finished product is processed, the surface is generally electroplated with anti-oxidation treatment, galvanized or nickel-plated. After electroplating, the surface becomes silver-white, and the broken section is gray-white.

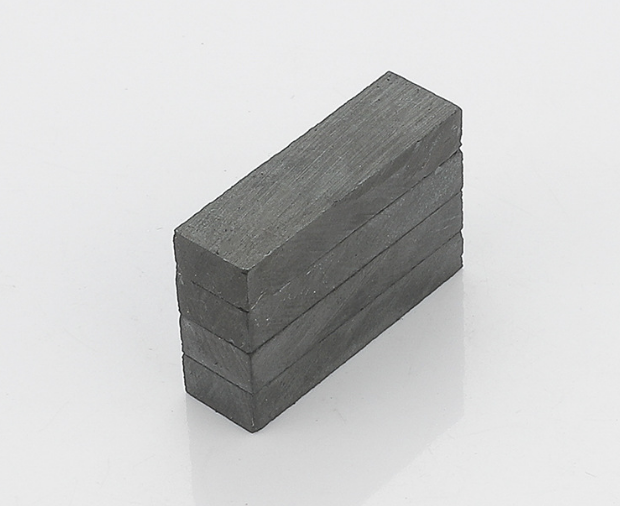

The surface of the ferrite magnet is jet black. Generally, the product does not need electroplating treatment (strong anti-corrosion and anti-rust ability), so the outer layer is still jet black, and the inside is jet black when broken.
In terms of weight, it can be distinguished from strong magnetic or weak magnetic. NdFeB strong magnet is a magnetic material product made of rare earth components extracted and sintered. The density of NdFeB is generally 7.5, and the weight is relatively heavy. The density of ferrite is generally It is 4.8, which is lighter than NdFeB.
The above is what Courage Xiaofu, a powerful magnet processing factory, introduced to you about whether the magnet is strong or ordinary. Our company produces and sells all kinds of permanent magnets. If you need a quotation, you can contact us for samples.
You are now viewing this is a bonded molded NdFeB magnet, ring shape, ring OD 38mm, hole 29mm, height 20mm, surface black epoxy coating, the magnetization is through the radial multi-pole magnetization, there are 10 poles, 5 N-pole, 5 S-pole....
You are now seeing the specifications of this magnet ring OD 13mm, bore diameter 8mm, thickness of 3.5mm, the surface of the black epoxy, due to the reason of the photo may look like a ferrite, the actual bonded ring magnets, suitable for a variety of types of motor, sensor, and electric appliances....
This sample is a semi-circular neodymium magnet, the performance grade is N40, the maximum working temperature is 80 ℃, the surface coating is nickel-copper-nickel, the appearance is silver-white, and the size can be customized. Industry experience, drawings and samples are customized according to industry needs, quality is guaranteed...
This is a semi-ring magnet, the appearance of black, about its material can be NdFeb black epoxy, can also be ferrite paint, depending on your requirements for magnet magnetism and price acceptance, our company can according to your magnet, working temperature, dimensional accuracy and other processing and customization...
This is a round magnet made of sintered ceramic ferrite material, diameter 20mm, thickness 10mm, although not as strong as neodymium material, but for general application is enough, the disk magnet also according to the customer's requirements with edge chamfering....
This is a diameter (radial) magnetization of small size ring magnet, material is sintered neodymium iron boron, performance grade is N48, is customized according to customer requirements, outer diameter of 7mm, hole 3mm, thickness of 3mm....
This is a large-sized multi-pole ring magnet, which was originally shot by Chinese magnet supplier Courage Xiaofu. If you see it in other websites, it is completely copied from us. The size of this magnet is 70.2mm in outer diameter, 51.83mm in inner diameter, and 28mm in thickness (height). The largest magnetic surface is on the outer side of the ring...
This is a multi-pole neodymium magnetic ring made of bonded NdFeB material, hollow cylindrical with 6 poles, radial distribution of 3N3S, outer diameter 12mm, center hole 8mm, height 20mm, surface magnetic strength of about 1750 gauss...
