Special shaped NdFeb magnet customization no drawing no sample can be done?

Addtime:2022-12-08 16:44:20 Click:586

Xiaofu found a problem, many customers customized special-shaped Ndfeb magnets without drawings and samples, directly give a size, and then ask whether this can be customized, so in this case can be customized to meet the customer's standard magnet?


This is of course not, if it is a common shape, such as a square circular ring and other conventional magnets, you only need to tell you the size, quantity, performance, coating and magnetization direction you need, the manufacturer can do according to your requirements, but the special-shaped Ndfeb high-intensity magnetic customization is different, because the special-shaped is more complicated to do, if there are no drawings and samples, Many parameters can not be said clearly by oral communication. Magnets are generally used as parts in other products. If the size or tolerance is a little different, it may not be able to be used.

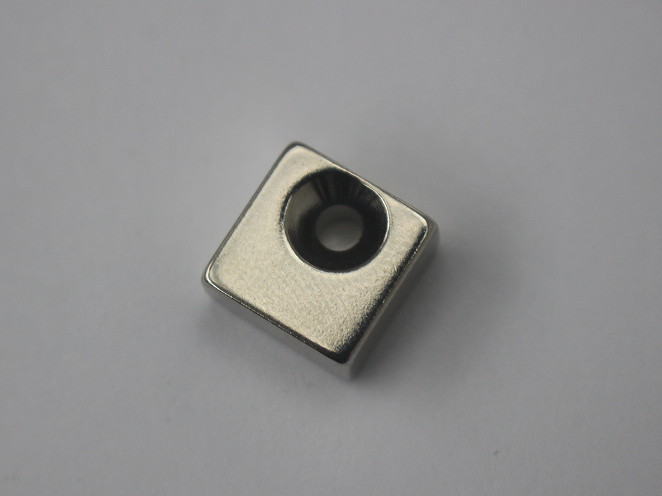

This is a square countersunk magnet with an off-center hole

square countersunk magnet with an off-center hole


Many motor customers need customized special-shaped NdFeb strong magnetic, like this kind of customers need to provide drawings, because the motor is more expensive, the magnet will be very high requirements, if you can suggest to provide samples, so that the manufacturer will first test your sample, and then according to your sample customized out of the same.


If you have such a problem now, it doesn't matter, Courage magnet manufacturer can help you solve, you just need to communicate the specific parameters with the staff of Jusheng clearly, Jusheng can provide you with drawings, after your verification, according to the drawings for you to make samples.


Customers often consult special shape ultra-strong neodymium magnet products;

Large size stepped convex neodymium super strong magnet 70x20x12mm

N52 Grade gold plated stepped disc magnets

Custom shape hexagon neodymium magnet N35-N52
