Introduction of Hall induction injection molding 8-pole ring ferrite magnet for sweeper;
Product name: Single-sided axial 8-pole injection magnetic ring (for sweeping robots)
Product material: injection molding ferrite
Product specifications: can be produced according to customer's drawing specifications and performance
Number of magnetizing poles: mainly axial 8 poles, 16 poles, 24 poles, 32 poles
Product advantages: smooth and flawless appearance, high dimensional accuracy, good consistency, no need for subsequent processing, stable performance, shock resistance and impact resistance, the main function of the magnetic ring on the walking wheel of the sweeping robot is to control the motor speed and steering.
Customers who need this injection-molded magnetic ring can contact the website customer service for samples and bulk prices.

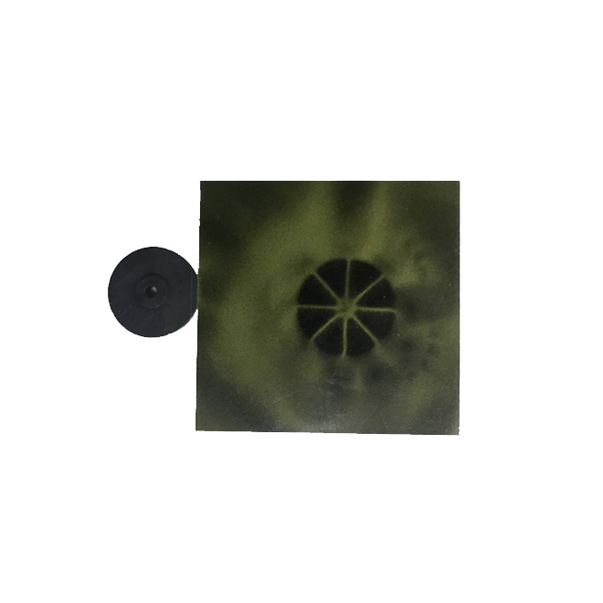

Real sample picture of 8 pole injection molded ring magnet

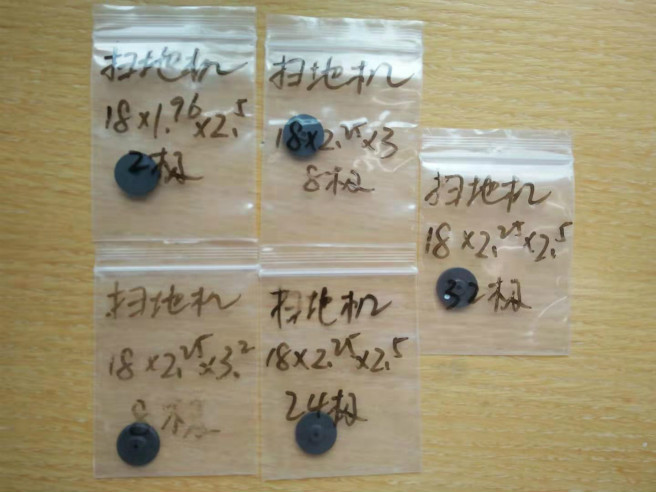

More sizes of our injection molding ferrite products;
